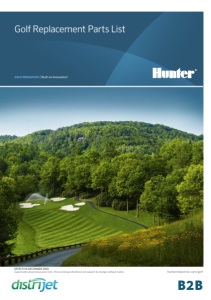

hunterindustries.com/golf EFFECTIVE DECEMBER 2020 Supersedes all previous price lists. Prices and specifications are subject to change without notice. Golf Replacement Parts List GOLF IRRIGATION | Built on Innovation ® hunterindustries.com/golf EFFECTIVE DECEMBER 2020 Supersedes all previous price lists. Prices and specifications are subject to change without notice. Golf Replacement Parts List GOLF IRRIGATION | Built on Innovation ® B2B
PISCINE POMPAGE IRRIGATION FONTAINE - BASSIN PIÈCES-DÉTACHÉES ANNEXES BRUMISATION PRO. EQUIPEMENT B2B - RÉSERVÉ AUX PROFESSIONNELS
PARC & JARDINS ARROSAGE BRUMISATION ECLAIRAGE
IRRIGATION - FABRICANTS HUNTER SOLEM RAIN BIRD NAANDANJAIN ANTELCO TECO SRL
IRRIGATION - FABRICANTS PISCINE & FONTAINE - FABRICANTS IRRITEC PLASSON ZODIAC SPECK PENTAIR OASE DOSATRON ACIS HAYWARD
Les Spécialistes des Métiers de l’Eau et du Paysage
B2B www.distrijet.ch 022 84 000 45 3 | Learn more. Visit hunterindustries.com/golf TABLE OF CONTENTS TABLE OF CONTENTS TTS-800 AND G-800 SERIES GOLF ROTORS ....... 4 GT-800-E/GT-800-D/GT-800-DD/GT-800-C Body Assembly .................................................................... 4 G-800-E/G-800-D/G-800-DD Body Assembly: Valve-In-Head ...................................................................... 6 G-800-C Body Assembly: Check-O-Matic .......................... 7 G-885 Riser Assembly: Adjustable Arc Configuration ........ 8 G-884 Riser Assembly: Adjustable Arc Configuration .......10 G-880 Riser Assembly: Full-Circle Configuration...............12 G-880 Riser Assembly: Full-Circle Configuration (Obsolete Model) ................................................................14 G-835 Riser Assembly: Adjustable Arc Configuration .......15 G-875 Riser Assembly: Adjustable Arc Configuration........16 G-870 Riser Assembly: Full-Circle Configuration ...............17 B SERIES GOLF ROTORS.................................... 18 G-80-B/G-84-B/G-85-B Body Assembly: Block ...............18 G-35-B/G-70-B/G-75-B Body Assembly: Block.................19 G-85-B Riser Assembly: Adjustable Arc Configuration.....20 G-84-B Riser Assembly: Adjustable Arc Configuration.....22 G-80-B Riser Assembly: Full-Circle Configuration ............ 24 G-80-B Riser Assembly: Full-Circle Configuration (Obsolete Model) ...............................................................26 G-35-B Riser Assembly: Full-Circle Configuration............. 27 G-75-B Riser Assembly: Adjustable Arc Configuration .....28 G-70-B Riser Assembly: Full-Circle Configuration.............29 G-900 SERIES GOLF ROTORS ........................... 30 G-900-E/G-900-D/G-900-DD Body Assembly: Valve-In-Head ....................................................................30 G-900-C Body Assembly: Check-O-Matic .........................31 G-995 Riser Assembly: Adjustable Arc Configuration ...... 32 G-990 Riser Assembly: Full-Circle Configuration.............. 33 MISCELLANEOUS ............................................. 34 Tools and Accessories: Golf Rotors ...................................34 G-900 Series Rubber Cover Kits........................................ 35 Hose Swivel Adapters ........................................................ 35 CONTROLLERS................................................. 36 Pilot-FC Parts ..................................................................... 36 Pilot-DH Parts .................................................................... 37 Communication Parts For Pilot-FC, -DH, and -FI ..............38 GFCP and VFCP (For All Conventional and Decoder Configurations)....................................................40 Conventional Controller Components (January 1998 – Present).................................................... 42 Decoder Controller Components (January 1998 – Present)....................................................44 Trisend Central Components .............................................46 ICD-HP Components .........................................................48 NOTES.............................................................. 49 WARRANTY ..................................................... 50
Les Spécialistes des Métiers de l’Eau et du Paysage 4 TTS-800 AND G-800 SERIES GOLF ROTORS GT-800-E/GT-800-D/GT-800-DD/GT-800-C BODY ASSEMBLY ITEM DESCRIPTION MODEL 1 Qty. 1, Lid Assembly, Switch 954400SP Qty. 1, Lid Assembly, COM 954401SP Qty. 10, Yardage Marker, Black 915700SP Qty. 10, Yardage Marker, Red 915701SP Qty. 10, Yardage Marker, Blue 915702SP Qty. 10, Yardage Marker, White 915703SP Qty. 10, Yardage Marker, Purple 915704SP 2 Qty. 10, Selector Switch, Grey 914600SP Qty. 10, Selector Switch, Yellow 914601SP Qty. 10, Selector Switch, DIH GRND 914602SP 3 Qty. 1, Selector Switch Bracket Assembly 10009300SP Qty. 5, Screw, 11/4” (30 mm) 334001SP 4 Qty. 1, Selector Switch Assembly, 50 PSI (3.4 bar; 340 kPa) 929100SP Qty. 1, Selector Switch Assembly, 65 PSI (4.9 bar; 490 kPa) 929101SP Qty. 1, Selector Switch Assembly, 80 PSI (5.5 bar; 550 kPa) 929102SP Qty. 1, Selector Switch Assembly, COM 10009000SP Qty. 1, Pressure Regulator, 50 PSI (3.4 bar; 340 kPa) 934500SP Qty. 1, Pressure Regulator, 65 PSI (4.9 bar; 490 kPa) 934501SP Qty. 1, Pressure Regulator, 80 PSI (5.5 bar; 550 kPa) 934502SP Qty. 1, Selector Switch Base Filter 386605SP Qty. 1, Manifold Assembly, TTS 929300SP 5 Qty. 1, Two-Way Module, 100, TTS 353601SP Qty. 1, Two-Way Module, 200, TTS 686501SP Qty. 1, Solenoid AC 606800 Qty. 1, Solenoid DC 458200 6 Qty. 1, Solenoid Base Assembly 929600SP 7 Qty. 10, Snap Ring, Lower, G-800 526800SP 8 Qty. 1, Inlet Valve, Elec, G-800 929700SP Qty. 1, Inlet Valve, COM 929701SP Qty. 1, Rock Screen Kit, Electric 10010300SP Qty. 1, Valve Filter Screen 387400SP Qty. 1, Velocity Control Disk Kit 10009400SP 9 Qty. 1, Pilot Valve Bracket Assembly 10009200SP Qty. 5, Screw, 11/4" (30 mm) 334001SP 10 Qty. 1, Body Assembly, GT-800 10009100SP
B2B www.distrijet.ch 022 84 000 45 5 | Learn more. Visit hunterindustries.com/golf TTS-800 AND G-800 SERIES GOLF ROTORS ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩
Les Spécialistes des Métiers de l’Eau et du Paysage 6 TTS-800 AND G-800 SERIES GOLF ROTORS 1 2 3 4 5 6 7 8 7 6 6 9 10 10 11 11 13 12 16 17 17 18 18 19 20 21 NOTE: ELECTRIC G-800 VALVES HAVE A WHITE FILTER SCREEN 3 G-800-E/G-800-D/G-800-DD BODY ASSEMBLY: VALVE-IN-HEAD ITEM DESCRIPTION MODEL 1 Qty. 10, Snap Ring, Lower G-800 (White) 526800SP 2 Qty. 1, Inlet Valve, Electric, G-800 (White Screen) 929700SP 3 O-Ring - Inlet Valve to Body Seal 426300 4 Qty. 10, Screw - Flange Lid Retainer 351800SP 5 Lid - Flange Compartment - Electric Recessed Yardage Marker Area 449420 Lid - Flange Compartment - Electric 449410 Raised Yardage Marker Area 6 Qty. 5, Selector Cap and Detent Ring Kit (Gray) 461536SP Selector Cap - DIH (Yellow) 454200 Selector Cap - DIH (Green) 454201 7 Qty. 1, Solenoid Kit - AC (Includes Items 6, 7, 8, 9, and 10) 461537SP 8 O-Ring - Solenoid Thread Seal 262600 9 Seal - Solenoid Plunger Seal 364405 10 Qty. 5, Selector Cap and Detent Ring Kit 461536SP 11 Qty. 1, Pilot Valve Kit (Tan) 461540SP 12 Qty. 1, Pressure Regulator Kit - Variable (50 to 120 PSI; 3.4 to 8.3 bar; 340 to 830 kPa) 674800SP 13 Control Tubing Kit - Includes: 24" (61 cm) of ⅛" Tubing, Connector, and Retainers (2) 461539 14 Tube Retainer - ⅛" Tubing (Not Shown) 476000 15 Connector - ⅛" x ⅛" Tubing (Not Shown) 494400 16 Body Assembly, Electric VIH - Includes: Tubing to Pilot Valve and Tubing to Regulator Plus Items 4, 5, 16, 17, and 18 (Does Not Include Pilot Valve or Pressure Regulator) 463736SP 17 Cap, Protective - Solenoid Wires 643900 18 Cap, Protective - Lower Compartment 474400 19 Restraint - Solenoid Wires 669300 20 Brace - DIH Decoder Support (Yellow) 526700 21 DIH-100 1-Station Decoder/Solenoid Assembly 353600 22 DIH-200 2-Station Decoder/Solenoid Assembly 686500
B2B www.distrijet.ch 022 84 000 45 7 | Learn more. Visit hunterindustries.com/golf TTS-800 AND G-800 SERIES GOLF ROTORS NOTE: COM/ HYD G-800 VALVES HAVE A BLACK FILTER SCREEN 3 1 2 4 5 6 7 8 9 10 11 12 13 12 13 G-800-C BODY ASSEMBLY: CHECK-O-MATIC ITEM DESCRIPTION MODEL 1 Qty. 10, Snap Ring, Lower G-800 (White) 526800SP 2 Qty. 1, Assembly, Inlet Valve, COM (Black Screen) 929701SP 3 O-Ring - Inlet Valve to Body Seal 426300 4 Qty. 10, Screw - Flange Lid Retainer 351800SP 5 Lid - Flange Compartment - COM 449405 Recessed Yardage Marker Area Lid - Flange Compartment - COM 449415 Raised Yardage Marker Area 6 Vent Cap - Valve Air Bleed 456600 7 Tube Retainer - ¼" Tubing 052610 8 Connector - ¼" x ⅛" Tubing (Not Shown) 402100 9 Tube Retainer - ⅛" Tubing 476000 10 Control Tubing Kit - Includes: 24" (61 cm) of ⅛" Tubing, Connector and Retainers (2) 461539 11 Body Assembly, COM, and Normally Open Hydraulic - Includes: Items 4 - 13 463734 12 Cap, Protective - Solenoid Wires 643900 13 Cap, Protective - Lower Compartment 474400 3 NOTE: G-800-C VALVES HAVE A BL CK FILTER SCREEN
Les Spécialistes des Métiers de l’Eau et du Paysage 8 TTS-800 AND G-800 SERIES GOLF ROTORS G-885 RISER ASSEMBLY: ADJUSTABLE ARC CONFIGURATION ITEM DESCRIPTION MODEL 1 Snap Ring Assembly - Upper (Black) 450100 Snap Ring Assembly - Upper (Purple) 450105 2 Screw - Logo Cap Retainer 189755 3 Rubber Logo Cap Assembly (Black) 255300 4 Yoke - Secondary Nozzle Housing 254500 5 O-Ring - Yoke Seal (2 used) 252104 6 Screw - Primary Nozzle Retainer 180900 7 Seal Block Assembly with O-Ring 517100 8 O-Ring - Seal Block 549400 9 Spring - Riser Retraction 553700 10 Face Seal 256500 11 Ratchet Ring/Spring Seat 255000 12 Riser Assembly - SRU - Includes Items 1 - 16 + Desired Nozzle Set (replace XX in model number with any Primary Nozzle #10 through #53) G885INT-XX 13 Stator Base (For Stator #14) 256600 14 Stator Adjustment Plate (Nozzles #23 - #53) 266500 15 Stator Variable (Nozzles #10 - #20) 271000 16 Screen - Riser Inlet 539200 17 Primary Nozzles - Each #10 - Light Green with Plug 272108 #13 - Light Blue 272109 #15 - White 272110 #18 - Orange 272111 #20 - Tan 272112 #23 - Green 272101 #25 - Blue 272102 #33 - Gray 272103 #38 - Red 272104 #43 - Dark Brown 272105 #48 - Dark Green 272106 #53 - Dark Blue 272107 Image on the following page; compatible with TTS800 and G-800 series body assemblies ITEM DESCRIPTION MODEL Low-Angle Primary Nozzles - Each #18 - Orange/Gray 301711 #20 - Tan/Gray 301712 #23 - Green/Gray 301701 #25 - Blue/Gray 301702 #33 - Gray/Gray 301703 #38 - Red/Gray 301704 #43 - Dark Brown/Gray 301705 #48 - Dark Green/Gray 301706 #53 - Dark Blue/Gray 301707 18 Short-Range Nozzles - Each Peach - Shortest Range 803604 Orange - Nozzles #10 - #23 803603 Red - Nozzles #25 - #43 803602 Dark Red - Nozzle #48 - #53 803601 19 Mid-Range Nozzles - Each White - Nozzles #13 - #15 315314 Light Green - Nozzles #18 - #23 315313 Green - Nozzles #25 - #43 315310 Dark Green - Nozzles #10, #48, and #53 315312 20 Plug - Nozzle (Black) 315300 21 Nozzle Pack - #10 - #20 (Includes Short and Mid) 460023SP 22 Nozzle Pack - #23 - #33 (Includes Short and Mid) 460024SP 23 Nozzle Pack - #38 - #53 (Includes Short and Mid) 460025SP 24 Yoke Assembly - Includes Items #4, #5, #18, #19, and #20 For Primary Nozzle #10 863501 For Primary Nozzles #13 - #15 863504 For Primary Nozzles #18 - #23 863503 For Primary Nozzles #25 - #43 863502 For Primary Nozzles #48 - #53 863500
B2B www.distrijet.ch 022 84 000 45 9 | Learn more. Visit hunterindustries.com/golf TTS-800 AND G-800 SERIES GOLF ROTORS 6 17 18 20 19 20 1 2 3 4 5 7 8 9 10 11 12 14 15 13 18 16 17 19 24
Les Spécialistes des Métiers de l’Eau et du Paysage 10 TTS-800 AND G-800 SERIES GOLF ROTORS G-884 RISER ASSEMBLY: ADJUSTABLE ARC CONFIGURATION ITEM DESCRIPTION MODEL 1 Snap Ring Assembly - Upper (Black) 450100 Snap Ring Assembly - Upper (Purple) 450105 2 Screw - Logo Cap Retainer 189755 3 Rubber Logo Cap Assembly (Black) 255303 4 Yoke - Secondary Nozzle Housing 254500 5 O-Ring - Yoke Seal (2 used) 252104 6 Screw - Primary Nozzle Retainer 180900 7 Seal Block Assembly with O-Ring 517100 8 O-Ring - Seal Block 549400 9 Spring - Riser Retraction 553700 10 Face Seal 256500 11 Ratchet Ring/Spring Seat 255000 12 Riser Assembly - SRU - Includes Items 1 - 16 + Desired Nozzle Set (replace XX in model number with any Primary Nozzle #15 through #53) G884INT-XX 13 Stator Base (For Stator #14) 256600 14 Stator Adjustment Plate (Nozzles #23 - #53) 266500 15 Stator Variable (Nozzles #10 - #20) 271000 16 Screen - Riser Inlet 539200 17 Primary Nozzles - Each #15 - White 272110 #18 - Orange 272111 #20 - Tan 272112 #23 - Green 272101 #25 - Blue 272102 #33 - Gray 272103 #38 - Red 272104 #43 - Dark Brown 272105 #48 - Dark Green 272106 #53 - Dark Blue 272107 Image on the following page; compatible with TTS-800 and G-800 series body assemblies ITEM DESCRIPTION MODEL Low-Angle Primary Nozzles - Each #18 - Orange/Gray 301711 #20 - Tan/Gray 301712 #23 - Green/Gray 301701 #25 - Blue/Gray 301702 #33 - Gray/Gray 301703 #38 - Red/Gray 301704 #43 - Dark Brown/ Gray 301705 #48 - Dark Green/ Gray 301706 #53 - Dark Blue/Gray 301707 18 Short-Range Nozzles - Each Tan - Nozzles #15 -#43 803611 Dark Brown - Nozzles #48 - #53 803610 19 Mid-Range Nozzles - Each Gray - Nozzles #15 - #20 315317 Light Blue - Nozzles #23 - #38 315311 Blue - Nozzle #43 315315 Dark Blue - Nozzles #48 - #53 833500 20 Plug - Nozzle (Black) 315300 21 Nozzle Pack - #15 – #20 (Includes Short and Mid) 460054 22 Nozzle Pack - #23 – #33 (Includes Short and Mid) 460055 23 Nozzle Pack - #38 – #53 (Includes Short and Mid) 460056 24 Yoke Assembly - Includes Items #4, #5, #18, #19, and #20 For Primary Nozzles #15 - #20 863505 For Primary Nozzles #23 - #38 863506 For Primary Nozzle #43 863507 For Primary Nozzles #48 - #53 863508
B2B www.distrijet.ch 022 84 000 45 11 | Learn more. Visit hunterindustries.com/golf TTS-800 AND G-800 SERIES GOLF ROTORS 1 2 3 4 5 6 7 8 9 10 11 12 14 17 17 15 13 20 20 20 19 20 18 16 24
Les Spécialistes des Métiers de l’Eau et du Paysage 12 TTS-800 AND G-800 SERIES GOLF ROTORS G-880 RISER ASSEMBLY: FULL-CIRCLE CONFIGURATION ITEM DESCRIPTION MODEL 1 Snap Ring Assembly - Upper (Black) 450100 Snap Ring Assembly - Upper (Purple) 450105 2 Screw - Logo Cap Retainer 189755 3 Rubber Logo Cap Assembly (Black) 255301 4 Yoke - Secondary Nozzle Housing 254500 5 O-Ring - Yoke Seal (2 used) 252104 6 Screw - Primary Nozzle Retainer 180900 7 Seal Block Assembly with O-Ring 517100 8 O-Ring - Seal Block 549400 9 Spring - Riser Retraction 553700 10 Face Seal 256500 11 Ratchet Ring/Spring Seat 255000 12 Riser Assembly - SRU - Includes Items 1 - 16 + Desired Nozzle Set (replace XX in model number with any Primary Nozzle #15 through #53) G880INT-XX 13 Stator Base (For Stator #14) 256600 14 Stator Adjustment Plate (Nozzles #23 - #53) 266500 15 Stator Variable (Nozzles #10 - #20) 271000 16 Screen - Riser Inlet 539200 17 Primary Nozzles - Each #15 - White 272110 #18 - Orange 272111 #20 - Tan 272112 #23 - Green 272101 #25 - Blue 272102 #33 - Gray 272103 #38 - Red 272104 #43 - Dark Brown 272105 #48 - Dark Green 272106 #53 - Dark Blue 272107 Image on the following page; compatible with TTS-800 and G-800 series body assemblies ITEM DESCRIPTION MODEL Low-Angle Primary Nozzles - Each #18 - Orange/Gray 301711 #20 - Tan/Gray 301712 #23 - Green/Gray 301701 #25 - Blue/Gray 301702 #33 - Gray/Gray 301703 #38 - Red/Gray 301704 #43 - Dark Brown/Gray 301705 #48 - Dark Green/Gray 301706 #53 - Dark Blue/Gray 301707 18 Short-Range Nozzles - Each Tan - Nozzles #15 - #43 803611 Dark Brown - Nozzles #48 - #53 803610 19 Mid-Range Nozzles - Each Gray - Nozzles #15 - #20 315317 Light Blue - Nozzles #23 - #38 315311 Blue - Nozzle #43 315315 Dark Blue - Nozzles #48 - #53 833500 20 Plug - Nozzle (Black) 315300 21 Nozzle Pack - #15 - #20 (Includes Short and Mid) 460054 22 Nozzle Pack - #23 - #33 (Includes Short and Mid) 460055 23 Nozzle Pack - #38 - #53 (Includes Short and Mid) 460056 24 Yoke Assembly - Includes Items #4, #5, #18, #19, and #20 For Primary Nozzles #15 - #20 863505 For Primary Nozzles #23 - #38 863506 For Primary Nozzle #43 863507 For Primary Nozzles #48 - #53 863508
B2B www.distrijet.ch 022 84 000 45 13 | Learn more. Visit hunterindustries.com/golf TTS-800 AND G-800 SERIES GOLF ROTORS 1 2 3 4 5 6 7 8 9 10 11 12 14 17 17 15 13 20 20 20 19 20 18 16 24
Les Spécialistes des Métiers de l’Eau et du Paysage 14 TTS-800 AND G-800 SERIES GOLF ROTORS 1 2 3 4 5 6 7 8 9 10 11 14 14 15 12 15 13 13 G-880 RISER ASSEMBLY: FULL-CIRCLE CONFIGURATION (OBSOLETE MODEL) ITEM DESCRIPTION MODEL 1 Snap Ring Assembly - Upper (Black) 450100 Snap Ring Assembly - Upper (Purple) Applications: Reclaimed Water Sites 450105 2 Screw - Shroud Retainer 376400 3 Rubber Logo Cap (Black) 453800 4 Shroud - Nozzle Housing 454100 5 Seal Block 664405 6 O-Ring - Seal 549400 7 Spring - Riser Retraction 553700 8 Face Seal - White 552400 9 Riser Assembly N/A 10 Plate - Stator Adjustment 266500 11 Screen - Riser Inlet - Date Codes 0213 And Prior 052868 Screen - Riser Inlet - Date Codes 0313 And After 254800 12 Nozzle Pack - Primary Nozzles (not shown) One Each #25 - #53 460002 13 Nozzle - Short Range - Black 495000 14 Nozzle - Mid-Range - Blue 494900 15 Nozzle - Primary - Bag of 25 Qty. 25, Nozzle #23, Green 494823SP #25 - Blue 460003 #33 - Gray 460004 #38 - Red 460005 #43 - Dark Brown 460006 #48 - Dark Green 460007 #53 - Dark Blue 460008 Obsolete model; replaced with updated G-80 in January 2019
B2B www.distrijet.ch 022 84 000 45 15 | Learn more. Visit hunterindustries.com/golf TTS-800 AND G-800 SERIES GOLF ROTORS 1 2 3 4 5 6 7 8 9 10 11 G-835 RISER ASSEMBLY: ADJUSTABLE ARC CONFIGURATION ITEM DESCRIPTION MODEL 1 Snap Ring Assembly - Upper (Black) 610100 Snap Ring Assembly - Upper (Purple) Applications: Reclaimed Water Sites 610105 2 Rubber Logo Cap - (Black) 553800 3 Screw - Nozzle Retainer 053143 4 Support - Riser Seal Upper 450400 5 Seal - Riser 450500 6 Support - Riser Seal Lower 052383 7 Spring - Riser Retraction 348700 8 Bumper - Riser 405700 9 Riser Assembly - Includes: Items 1 - 11 400600 10 Screen - Riser Inlet 450600 11 Nozzle Rack 554000 Compatible with TTS-800 and G-800 series body assemblies
Les Spécialistes des Métiers de l’Eau et du Paysage 16 TTS-800 AND G-800 SERIES GOLF ROTORS 1 2 3 4 5 6 7 8 9 10 11 12 13 G-875 RISER ASSEMBLY: ADJUSTABLE ARC CONFIGURATION ITEM DESCRIPTION MODEL 1 Snap Ring Assembly - Upper (Black) 610100 Snap Ring Assembly - Upper (Purple) Applications: Reclaimed Water Sites 610105 2 Rubber Logo Cap - (Black) 402720 3 Screw - Nozzle Retainer 053143 4 Support - Riser Seal Upper 450400 5 Seal - Riser 450500 6 Support - Riser Seal Lower 052383 7 Spring - Riser Retraction 348700 8 Bumper - Riser 405700 9 Riser Assembly - Includes: Items 1 - 12 474571SP 10 Plate - Stator Adjustment 439600 11 Screen - Riser Inlet 450600 12 Nozzle Pack 461532 13 Nozzle Assembly - Bag of 25 # 8 - Light Brown 463404 #10 - Light Green 463405 #13 - Light Blue 463406 #15 - Gray 463407 #18 - Red 463408 #20 - Dark Brown 463409 #23 - Dark Green 463410 #25 - Dark Blue 463411 #28 - Black 463412
B2B www.distrijet.ch 022 84 000 45 17 | Learn more. Visit hunterindustries.com/golf TTS-800 AND G-800 SERIES GOLF ROTORS 1 2 3 4 5 6 7 8 9 10 11 12 13 G-870 RISER ASSEMBLY: FULL-CIRCLE CONFIGURATION ITEM DESCRIPTION MODEL 1 Snap Ring Assembly - Upper (Black) 610100 Snap Ring Assembly - Upper (Purple) Applications: Reclaimed Water Sites 610105 2 Rubber Logo Cap - (Black) 402710 3 Screw - Nozzle Retainer (2 Required) 053143 4 Support - Riser Seal Upper 450400 5 Seal - Riser 450500 6 Support - Riser Seal Lower 052383 7 Spring - Riser Retraction 348700 8 Bumper - Riser 405700 9 Riser Assembly - Includes: Items 1 - 12 474507SP 10 Plate - Stator Adjustment 439600 11 Screen - Riser Inlet 450600 12 Nozzle Pack 463210 13 Nozzle Rack - Bag of 25 #15 - Gray 463213 #18 - Red 463214 #20 - Dark Brown 463215 #23 - Dark Green 463216 #25 - Dark Blue 463217 #28 - Black 463218
Les Spécialistes des Métiers de l’Eau et du Paysage 18 1 2 3 B SERIES GOLF ROTORS G-80-B/G-84-B/G-85-B BODY ASSEMBLY: BLOCK ITEM DESCRIPTION MODEL 1 Snap Ring Assembly - Upper (Black) 450100 Snap Ring Assembly - Upper (Purple) Applications: Reclaimed Water Sites 450105 2 Flange Cap 322400 3 Body - Block with 1¼" (30 mm) Acme Inlet 781300
B2B www.distrijet.ch 022 84 000 45 | Learn more. Visit hunterindustries.com/golf B SERIES GOLF ROTORS 19 G-35-B/G-70-B/G-75-B BODY ASSEMBLY: BLOCK ITEM DESCRIPTION MODEL 1 Snap Ring Assembly - Upper (Black) 403400 Snap Ring Assembly - Upper (Purple) Applications: Reclaimed Water Sites 470600 2 Body - Block with 1¼" (30 mm) Acme Inlet 401800 1 2
Les Spécialistes des Métiers de l’Eau et du Paysage B SERIES GOLF ROTORS 20 G-85-B RISER ASSEMBLY: ADJUSTABLE ARC CONFIGURATION ITEM DESCRIPTION MODEL 1 Snap Ring Assembly - Upper (Black) 450100 Snap Ring Assembly - Upper (Purple) 450105 2 Screw - Logo Cap Retainer 189755 3 Rubber Logo Cap Assembly (Black) 255300 4 Yoke - Secondary Nozzle Housing 254500 5 O-Ring - Yoke Seal (2 used) 252104 6 Screw - Primary Nozzle Retainer 180900 7 Seal Block Assembly with O-Ring 517100 8 O-Ring - Seal Block 549400 9 Spring - Riser Retraction 553700 10 Face Seal 256500 11 Ratchet Ring/Spring Seat 255000 12 Riser Assembly - SRU - Includes Items 1 - 13 + 17 + 18 + #18 Nozzle Installed, Includes #10 - #20 Nozzle Pack 460017 Riser Assembly - SRU - Includes Items 1 - 16 + 18 + #25 Nozzle Installed. Includes #23 - #33 Nozzle Pack 460018 Riser Assembly - SRU - Includes Items 1 - 16 + 18 + #48 Nozzle Installed, Includes #38 - #53 Nozzle Pack 460021 13 Stator Base (For Stator #14) 256600 14 Stator Adjustment Plate (Nozzles #23 - #53) 266500 15 Stator Variable (Nozzles #10 - #20) 271000 16 Screen/Check Valve - Riser Inlet 271900 17 Primary Nozzles - Each #10 - Light Green with Plug 272108 #13 - Light Blue 272109 #15 - White 272110 #18 - Orange 272111 #20 - Tan 272112 #23 - Green 272101 #25 - Blue 272102 #33 - Gray 272103 #38 - Red 272104 #43 - Dark Brown 272105 #48 - Dark Green 272106 #53 - Dark Blue 272107 Image on the following page ITEM DESCRIPTION MODEL Low-Angle Primary Nozzles - Each #18 - Orange/Gray 301711 #20 - Tan/Gray 301712 #23 - Green/Gray 301701 #25 - Blue/Gray 301702 #33 - Gray/Gray 301703 #38 - Red/Gray 301704 #43 - Dark Brown/Gray 301705 #48 - Dark Green/Gray 301706 #53 - Dark Blue/Gray 301707 18 Short-Range Nozzles - Each Peach - Shortest Range 803604 Orange - Nozzles #10 - #23 803603 Red - Nozzles #25 - #43 803602 Dark Red - Nozzle #48 - #53 803601 19 Mid-Range Nozzles - Each White - Nozzles #13 - #15 315314 Light Green - Nozzles #18 - #23 315313 Green - Nozzles #25 - #43 315310 Dark Green - Nozzles #10, #48, and #53 315312 20 Plug - Nozzle (Black) 315300 21 Nozzle Pack - #10 - #20 (Includes Short and Mid) 460023SP 22 Nozzle Pack - #23 - #33 (Includes Short and Mid) 460024SP 23 Nozzle Pack - #38 - #53 (Includes Short and Mid) 460025SP 24 Yoke Assembly - Includes Items #4, #5, #18, #19, and #20 For Primary Nozzle #10 863501 For Primary Nozzles #13 - #15 863504 For Primary Nozzles #18 - #23 863503 For Primary Nozzles #25 - #43 863502 For Primary Nozzles #48 - #53 863500
B2B www.distrijet.ch 022 84 000 45 | Learn more. Visit hunterindustries.com/golf B SERIES GOLF ROTORS 21 6 17 18 20 19 20 1 2 3 4 5 7 8 9 10 11 12 14 15 13 18 16 17 19 24
Les Spécialistes des Métiers de l’Eau et du Paysage B SERIES GOLF ROTORS 22 G-84-B RISER ASSEMBLY: ADJUSTABLE ARC CONFIGURATION ITEM DESCRIPTION MODEL 1 Snap Ring Assembly - Upper (Black) 450100 Snap Ring Assembly - Upper (Purple) 450105 2 Screw - Logo Cap Retainer 189755 3 Rubber Logo Cap Assembly (Black) 255303 4 Yoke - Secondary Nozzle Housing 254500 5 O-Ring - Yoke Seal (2 used) 252104 6 Screw - Primary Nozzle Retainer 180900 7 Seal Block Assembly with O-Ring 517100 8 O-Ring - Seal Block 549400 9 Spring - Riser Retraction 553700 10 Face Seal 256500 11 Ratchet Ring/Spring Seat 255000 12 Riser Assembly - SRU - Includes Items 1 - 13 + 17 + 18 + #18 Nozzle Installed, Includes #10 - #20 Nozzle Pack 460048 Riser Assembly - SRU - Includes Items 1 - 16 + 18 + #25 Nozzle Installed, Includes #23 - #33 Nozzle Pack 460049 Riser Assembly - SRU - Includes Items 1 - 16 + 18 + #48 Nozzle Installed, Includes #38 - #53 Nozzle Pack 460050 13 Stator Base (For Stator #14) 256600 14 Stator Adjustment Plate (Nozzles #23 - #53) 266500 15 Stator Variable (Nozzles #10 - #20) 271000 16 Screen/Check Valve - Riser Inlet 271900 17 Primary Nozzles - Each #15 - White 272110 #18 - Orange 272111 #20 - Tan 272112 #23 - Green 272101 #25 - Blue 272102 #33 - Gray 272103 #38 - Red 272104 #43 - Dark Brown 272105 #48 - Dark Green 272106 #53 - Dark Blue 272107 Image on the following page ITEM DESCRIPTION MODEL Low-Angle Primary Nozzles - Each #18 - Orange/Gray 301711 #20 - Tan/Gray 301712 #23 - Green/Gray 301701 #25 - Blue/Gray 301702 #33 - Gray/Gray 301703 #38 - Red/Gray 301704 #43 - Dark Brown/Gray 301705 #48 - Dark Green/Gray 301706 #53 - Dark Blue/Gray 301707 18 Short-Range Nozzles - Each Tan - Nozzles #15 -#43 803611 Dark Brown - Nozzles #48 - #53 803610 19 Mid-Range Nozzles - Each Gray - Nozzles #15 - #20 315317 Light Blue - Nozzles #23 - #38 315311 Blue - Nozzle #43 315315 Dark Blue - Nozzles #48 - #53 833500 20 Plug - Nozzle (Black) 315300 21 Nozzle Pack - #15 – #20 (Includes Short and Mid) 460054 22 Nozzle Pack - #23 – #33 (Includes Short and Mid) 460055 23 Nozzle Pack - #38 – #53 (Includes Short and Mid) 460056 24 Yoke Assembly - Includes Items #4, #5, #18, #19, and #20 For Primary Nozzles #15 - #20 863505 For Primary Nozzles #23 - #38 863506 For Primary Nozzle #43 863507 For Primary Nozzles #48 - #53 863508
B2B www.distrijet.ch 022 84 000 45 | Learn more. Visit hunterindustries.com/golf B SERIES GOLF ROTORS 23 1 2 3 4 5 6 7 8 9 10 11 12 14 17 17 15 13 20 20 20 19 20 18 16 24
Les Spécialistes des Métiers de l’Eau et du Paysage B SERIES GOLF ROTORS 24 G-80-B RISER ASSEMBLY: FULL-CIRCLE CONFIGURATION ITEM DESCRIPTION MODEL 1 Snap Ring Assembly - Upper (Black) 450100 Snap Ring Assembly - Upper (Purple) 450105 2 Screw - Logo Cap Retainer 189755 3 Rubber Logo Cap Assembly (Black) 255301 4 Yoke - Secondary Nozzle Housing 254500 5 O-Ring - Yoke Seal (2 used) 252104 6 Screw - Primary Nozzle Retainer 180900 7 Seal Block Assembly with O-Ring 517100 8 O-Ring - Seal Block 549400 9 Spring - Riser Retraction 553700 10 Face Seal 256500 11 Ratchet Ring/Spring Seat 255000 12 Riser Assembly - SRU - Includes Items 1-16 + 18 + #25 Nozzle Installed, Includes #23 - #33 Nozzle Pack 994900SP Riser Assembly - SRU - Includes Items 1-16 + 18 + #48 Nozzle Installed, Includes #38 - #53 Nozzle Pack 995100SP 13 Stator Base (For Stator #14) 256600 14 Stator Adjustment Plate (Nozzles #23 - #53) 266500 15 Stator Variable (Nozzles #10 - #20) 271000 16 Screen/Check Valve - Riser Inlet 271900 17 Primary Nozzles - Each #15 - White 272110 #18 - Orange 272111 #20 - Tan 272112 #23 - Green 272101 #25 - Blue 272102 #33 - Gray 272103 #38 - Red 272104 #43 - Dark Brown 272105 #48 - Dark Green 272106 #53 - Dark Blue 272107 Image on the following page ITEM DESCRIPTION MODEL Low-Angle Primary Nozzles - Each #18 - Orange/Gray 301711 #20 - Tan/Gray 301712 #23 - Green/Gray 301701 #25 - Blue/Gray 301702 #33 - Gray/Gray 301703 #38 - Red/Gray 301704 #43 - Dark Brown/Gray 301705 #48 - Dark Green/Gray 301706 #53 - Dark Blue/Gray 301707 18 Short-Range Nozzles - Each Tan - Nozzles #15 -#43 803611 Dark Brown - Nozzles #48 - #53 803610 19 Mid-Range Nozzles - Each Gray - Nozzles #15 - #20 315317 Light Blue - Nozzles #23 - #38 315311 Blue - Nozzle #43 315315 Dark Blue - Nozzles #48 - #53 833500 20 Plug - Nozzle (Black) 315300 21 Nozzle Pack - #15 - #20 (Includes Short and Mid) 460054 22 Nozzle Pack - #23 - #33 (Includes Short and Mid) 460055 23 Nozzle Pack - #38 - #53 (Includes Short and Mid) 460056 24 Yoke Assembly - Includes Items #4, #5, #18, #19, and #20 For Primary Nozzles #15 - #20 863505 For Primary Nozzles #23 - #38 863506 For Primary Nozzle #43 863507 For Primary Nozzles #48 - #53 863508
B2B www.distrijet.ch 022 84 000 45 | Learn more. Visit hunterindustries.com/golf B SERIES GOLF ROTORS 25 1 2 3 4 5 6 7 8 9 10 11 12 14 17 17 15 13 20 20 20 19 20 18 16 24
Les Spécialistes des Métiers de l’Eau et du Paysage B SERIES GOLF ROTORS 26 1 2 3 4 5 6 7 8 9 10 11 13 12 14 13 14 12 G-80-B RISER ASSEMBLY: FULL-CIRCLE CONFIGURATION (OBSOLETE MODEL) ITEM DESCRIPTION MODEL 1 Screw - Shroud Retainer 376400 2 Rubber Logo Cap (Black) 453800 3 Shroud - Nozzle Housing 454100 4 Seal Block 664405 5 O-Ring - Seal 549400 6 Spring - Riser Retraction 553700 7 Face Seal - White 552400 8 Riser Assembly N/A 9 Plate - Stator Adjustment 266500 10 Screen - With Check Valve 271900 11 Nozzle Pack - Primary Nozzles (not shown) One Each #25 - #53 460002SP 12 Nozzle - Short Range - Black 495000 13 Nozzle - Mid-Range - Blue 494900 14 Nozzle - Primary - Bag of 25 #23 - Green 494823SP #25 - Blue 460003 #33 - Gray 460004 #38 - Red 460005 #43 - Dark Brown 460006 #48 - Dark Green 460007 #53 - Dark Blue 460008 Obsolete model; replaced with updated G-80 in January 2019
B2B www.distrijet.ch 022 84 000 45 | Learn more. Visit hunterindustries.com/golf B SERIES GOLF ROTORS 27 G35B Page Golf Rotor Parts Price List.pdf 1 3/28/14 12:31 PM 1 2 3 4 5 6 11 7 8 9 10 G-35-B RISER ASSEMBLY: FULL-CIRCLE CONFIGURATION ITEM DESCRIPTION MODEL 1 Rubber Logo Cap (Black) 553800 2 Screw - Nozzle Retainer 053143 3 Support - Riser Seal Upper 349100 4 Seal - Riser 348900 5 Support - Riser Seal Lower 052383 6 Spring - Riser Retraction 348700 7 Bumper - Riser 405700 8 Riser Assembly - Includes: Items 1 - 11 Plus 403400 Snap Ring 400500 9 Screen - With Check Seal (Black) 422200 10 Check Seal 424800 11 Nozzle Rack 554000
Les Spécialistes des Métiers de l’Eau et du Paysage B SERIES GOLF ROTORS 28 1 2 3 4 5 6 10 11 12 13 7 8 9 G-75-B RISER ASSEMBLY: ADJUSTABLE ARC CONFIGURATION ITEM DESCRIPTION MODEL 1 Rubber Logo Cap (Black) 402720 2 Screw - Nozzle Retainer 053143 3 Support - Riser Seal Upper 349100 4 Seal - Riser 348900 5 Support - Riser Seal Lower 052383 6 Spring - Riser Retraction 348700 7 Bumper - Riser 405700 8 Riser Assembly - Includes: Items 1 - 12 Plus 403400 Snap Ring 474211SP 9 Plate - Stator Adjustment 439600 10 Screen - With Check Seal (Black) 422200 11 Check Seal 424800 12 Nozzle Pack 461532 13 Nozzle Assembly - Bag of 25 # 8 - Light Brown 463404 #10 - Light Green 463405 #13 - Light Blue 463406 #15 - Gray 463407 #18 - Red 463408 #20 - Dark Brown 463409 #23 - Dark Green 463410 #25 - Dark Blue 463411 #28 - Black 463412
B2B www.distrijet.ch 022 84 000 45 | Learn more. Visit hunterindustries.com/golf B SERIES GOLF ROTORS 29 1 2 3 4 5 6 7 8 9 10 11 13 12 G-70-B RISER ASSEMBLY: FULL-CIRCLE CONFIGURATION ITEM DESCRIPTION MODEL 1 Rubber Logo Cap (Black) 402710 2 Screw - Nozzle Retainer 053143 3 Support - Riser Seal Upper 349100 4 Seal - Riser 348900 5 Support - Riser Seal Lower 052383 6 Spring - Riser Retraction 348700 7 Bumper - Riser 405700 8 Riser Assembly - Includes: Items 1 - 12 Plus 403400 Snap Ring 474210SP 9 Plate - Stator Adjustment 439600 10 Screen - With Check Seal (Black) 422200 11 Check Seal 424800 12 Nozzle Pack 463210 13 Nozzle Assembly - Bag of 25 #15 - Gray 463213 #18 - Red 463214 #20 - Dark Brown 463215 #23 - Dark Green 463216 #25 - Dark Blue 463217 #28 - Black 463218
Les Spécialistes des Métiers de l’Eau et du Paysage G-900 SERIES GOLF ROTORS 30 NOTE: ELECTRIC VALVES HAVE A WHITE SCREEN 1 2 3 4 5 6 7 8 9 7 8 10 11 12 11 12 19 19 18 18 13 20 20 14 21 7 22 G-900 SERIES GOLF ROTORS G-900-E/G-900-D/G-900-DD BODY ASSEMBLY: VALVE-IN-HEAD ITEM DESCRIPTION MODEL 1 Snap Ring - Lower (White) 052830 2 Qty. 1, Inlet Valve Assembly - Electric VIH (White Screen) 643200SP 3 Screen And Valve Seat - White 643400 4 O-Ring - Inlet Valve to Body Seal 643500 5 Qty. 10, Screw - Flange Lid Retainer 351800SP 6 Lid - Flange Compartment - Electric Recessed Yardage Marker Area 493600 Lid - Flange Compartment - Electric Raised Yardage Marker Area 493610 7 Qty. 5, Selector Cap and Detent Ring Kit (Gray) 461536SP Selector Cap - DIH (Yellow) 454200 Selector Cap - DIH (Green) 454201 8 Qty. 1, Solenoid Kit - AC (Includes Items 6, 7, 8, 9, and 10) 461537SP 9 O-Ring - Solenoid Thread Seal 262600 10 Seal - Solenoid Plunger Seal 364405 11 Qty. 5, Selector Cap and Detent Ring Kit 461536SP 12 Qty. 1, Pilot Valve Kit (Tan) 461540SP 13 Qty. 1, Pressure Regulator Kit - Variable (50 to 120 PSI; 3.5 to 8.3 bar; 345 to 827 kPa) 674800SP 14 Control Tubing Kit - Includes: 24" (61 cm) of ⅛" Tubing, Connector, and Retainers (2) 461539 15 Tube Retainer - ⅛" Tubing (not shown) 476000 16 Connector - ⅛" x ⅛" Tubing (not shown) 494400 17 Body Assembly, Electric VIH - Includes: Tubing to Pilot Valve and Tubing to Regulator Plus Items 14, 15, and 16 (Does Not Include Pilot Valve or Pressure Regulator) 674600 18 Cap, Protective - Solenoid Wires 643900 19 Cap, Protective - Lower Compartment 474400 20 Restraint - Solenoid Wires 669300 21 Brace - DIH Decoder Support (Yellow) 526700 22 DIH-100 1-Station Decoder/ Solenoid Assembly 353600 DIH-200 2-Station Decoder/ Solenoid Assembly 686500
B2B www.distrijet.ch 022 84 000 45 | Learn more. Visit hunterindustries.com/golf G-900 SERIES GOLF ROTORS 31 1 2 3 4 5 6 7 8 9 10 11 12 13 13 14 14 NOTE: COM/HYDRAULIC VALVES HAVE A BLACK SCREEN G-900-C BODY ASSEMBLY: CHECK-O-MATIC ITEM DESCRIPTION MODEL 1 Snap Ring - Lower (White) 052830 2 Qty. 1, Inlet Valve Assembly - COM and Normally Open Hydraulic (Black Screen) 672500SP 3 Screen And Valve Seat - Black 643405 4 O-Ring - Inlet Valve to Body Seal 643500 5 Qty. 10, Screw - Flange Lid Retainer 351800SP 6 Lid - Flange Compartment - COM Recessed Yardage Marker Area 493605 Lid - Flange Compartment - COM Raised Yardage Marker Area 493615 7 Vent Cap - Valve Air Bleed 456600 8 Tube Retainer - ¼" Tubing 056210 9 Connector - ¼" x ⅛" Tubing (not shown) 402100 10 Tube Retainer - ⅛" Tubing 476000 11 Control Tubing Kit - Includes: 24" (61 cm) of ⅛" Tubing, Connector and Retainers (2) 461539 12 Body Assembly, COM, and Normally Open Hydraulic - Includes: Items 6 - 13 674700 13 Cap, Protective - Solenoid Wire Hole 643900 14 Cap, Protective - Lower Compartment 474400
Les Spécialistes des Métiers de l’Eau et du Paysage G-900 SERIES GOLF ROTORS 32 1 2 3 4 5 6 7 8 9 10 12 17 18 15 13 14 16 11 G-995 RISER ASSEMBLY: ADJUSTABLE ARC CONFIGURATION ITEM DESCRIPTION MODEL 1 Screw - Logo Cap Retainer 351800 2 Rubber Logo Cap (Black) 664100 Rubber Logo Cap (Purple) - Applications: Reclaimed Water Sites 664105 3 Snap Ring Assembly (Black) 430700 4 Screw - Nozzle Retainer (5 Required) 333900 5 Seal Block* 171700* 6 O-Ring - Seal* 171600* 7 Spring - Riser Retraction* 171900* 8 Face Seal - Black* 406000* 9 Bumper - Gray* 171800* 10 Riser Assembly - Includes: Items 3 - 13, 15, 16 463004SP 11 Plate - Stator Adjustment 052833 12 Screen - Riser Inlet 052868 13 Qty. 5, Nozzle Pack - Primary Nozzles, #25-#73 461204SP 14 Primary Nozzles - Bag of 25 #25 - Light Blue 460011 #33 - Gray 464363 #38 - Red 464364 #43 - Dark Brown 464365 #48 - Dark Green 464366 #53 - Dark Blue 464367 #63 - Black 464368 #73 - Orange 460012 Low-Angle Nozzles - Bag of 25 #25 - Light Blue/Black 791500 #33 - Gray/Black 791600 #38 - Red/Black 791800 #43 - Dark Brown/Black 791900 #48 - Dark Green/Black 792000 #53 - Dark Blue/Black 792100 #63 - Black/Black 792200 #73 - Orange/Black 792300 15 Nozzle - Short-Range (5/11 and Prior) Left Side, Black 439100 Nozzle - Short-Range (6/11 and After) Left Side, Red 191800 16 Nozzle - Mid-Range (5/11 and Prior) Right Side, Green 439000 Nozzle - Mid-Range (6/11 and After) Right Side, Green 195701 17 Plug - Nozzle (6/11 and After) Left Black 195803 18 Plug - Nozzle (6/11 and After) Right Black 195703 * Items 5, 6, 7, 8, and 9 must all be replaced when changing any riser seal part on risers date coded 1208 (December 2008) and prior
B2B www.distrijet.ch 022 84 000 45 | Learn more. Visit hunterindustries.com/golf G-900 SERIES GOLF ROTORS 33 1 2 3 4 5 6 7 8 9 10 11 12 17 18 16 14 13 15 G-990 RISER ASSEMBLY: FULL-CIRCLE CONFIGURATION ITEM DESCRIPTION MODEL 1 Screw - Logo Cap Retainer 351800 2 Rubber Logo Cap (Black) 664000 Rubber Logo Cap (Purple) - Applications: Reclaimed Water Sites 664005 3 Snap Ring Assembly (Black) 430700 4 Screw - Nozzle Retainer (5 Required) 333900 5 Seal Block* 171700* 6 O-Ring - Seal* 171600* 7 Spring - Riser Retraction* 171900* 8 Face Seal - Black* 406000* 9 Bumper - Gray* 171800* 10 Riser Assembly - Includes: Items 3 - 13, 15, 16 463002SP 11 Plate - Stator Adjustment 052833 12 Screen - Riser Inlet 052868 13 Qty. 5, Nozzle Pack - Primary Nozzles, #25-#73 461204SP 14 Primary Nozzles - Bag of 25 #25 - Light Blue 460011 #33 - Gray 464363 #38 - Red 464364 #43 - Dark Brown 464365 #48 - Dark Green 464366 #53 - Dark Blue 464367 #63 - Black 464368 #73 - Orange 460012 Low-Angle Nozzles - Bag of 25 #25 - Light Blue/Black 791500 #33 - Gray/Black 791600 #38 - Red/Black 791800 #43 - Dark Brown/Black 791900 #48 - Dark Green/Black 792000 #53 - Dark Blue/Black 792100 #63 - Black/Black 792200 #73 - Orange/Black 792300 15 Nozzle - Short-Range (5/11 and Prior) Left Side, Black 439100 Nozzle - Short-Range (6/11 and After) Left Side, Red 191800 16 Nozzle - Mid-Range (5/11 and Prior) Right Side, Blue 455400 Nozzle - Mid-Range (6/11 and After) Right Side, Blue 195704 17 Plug - Nozzle (6/11 and After) Left Blk 195803 18 Plug - Nozzle (6/11 and After) Right Blk 195703 * Items 5, 6, 7, 8, and 9 must all be replaced when changing any riser seal part on risers date coded 1208 (December 2008) and prior
Les Spécialistes des Métiers de l’Eau et du Paysage TOOLS & ACCESSORIES 34 1 4 7 8 2 5 9 3 6 10 11 12 MISCELLANEOUS TOOLS AND ACCESSORIES: GOLF ROTORS ITEM DESCRIPTION MODEL 1 Qty. 1, Tool, Snap Ring Removal 251000SP 2 Valve Insertion/Removal Tool - G-90 and G-900 Series 280500SP 3 Valve Insertion/Removal Tool - G-800 Series 604000SP 4 Valve and Snap Ring Pliers - G-800 Series 475600SP 5 T-Handle Tool - VIH Selector, Nozzle Insertion, Riser Lift-Up and Arc Adjustment 319100SP 6 Qty. 100, Hunter Wrench 172000SP 7 Rotor Pitot Gauge and Tube Assembly 280100SP 8 Hand Pump - Water Extraction 460302SP 9 Golf Rotor Tool Kit - Includes Items 1, 4, 5, 6, 7, 8, 9, 10, 13, and Plus Toolbox and Screwdriver 475700SP 10 Hose Adapter and Swivel - G-90 Series “C”, “H” and “E” G90HS100 Hose Adapter and Swivel - G-800 Series “C”, “H” and “E” G800HS100 11 Arc Adjustment/Riser Hold-Up - G-85-B and G-885 382800SP 12 Nozzle Removal/Installation - G-85-B and G-885 Short/Mid-Range Nozzles 803700SP
B2B www.distrijet.ch 022 84 000 45 35 | Learn more. Visit hunterindustries.com/golf 1 1 2 3 TOOL AND ACCESSORIES G-900 SERIES RUBBER COVER KITS ITEM DESCRIPTION MODEL 1 Screw - Cap Retainer - All 351800 2 Logo Cap - G-90 and G-990 - Date Codes 06/11 and Prior Only 103100 Logo Cap - G-95 and G-995 - Also G-990 Date Codes 07/11 and After 103300 3 Ring - Flange Cover - G-990 and G-995 102400 4 Kit - G-990 Rubber Cover - Includes Items 1, 2, and 3 - Date Codes 06/11 and Prior Only 473800 Kit - G-995 Rubber Cover - Includes Items 1, 2, and 3 - Also G-990 Date Codes 07/11 and After 473900SP HOSE SWIVEL ADAPTERS G-90/G-900 SERIES RUBBER COVER KITS ITEM DESCRIPTION MODEL 1 O-Ring for G90HS100 549500 O-Ring for G800HS100 549400
Les Spécialistes des Métiers de l’Eau et du Paysage 36 CONTROLLERS PILOT-FC PARTS ITEM DESCRIPTION MODEL 1 Lid Kit with Hinge and Lock PILOTLIDKIT 2 Lid Lock and Keys 558000 3 Door with Screens and Envelope PILOTDOORKT 4 FC Facepack PILOTFPFC 5 FP or Backplane Cable Harness (Black/White) 527300 6 Screwdriver 801300 7 Transformer Assembly (Main) 356100 8 DC Power Supply Assembly (FC) 512700 9 Power Module Assembly (FC) PILOTPWR 10 Junction Box Including Switch 427700 11 Terminal Block Assembly 412000 12 Backplane Kit Including 527300 Cable PILOTFCBP 13 Front Plane Kit/Midplane Assembly 411600 14 Template with Bolts 581700 15 10-Station Output Module PILOTFC010 1 2 6 7 5 10 5 11 8 4 3 13 9 14 12
B2B www.distrijet.ch 022 84 000 45 | Learn more. Visit hunterindustries.com/golf CONTROLLERS 37 PILOT-DH PARTS ITEM DESCRIPTION MODEL 1 Lid Kit with Hinge and Lock PILOTLIDKIT 2 Lid Lock and Keys 558000 3 Door with Screens and Envelope PILOTDOORKT 4 DH Facepack PILOTFPDH 5 FP or Backplane Cable Harness (Black/White) 527300 6 Screwdriver 801300 7 DC Power Supply Assembly (DH) 512701 8 Junction Box Includes Switch (DH) 427701 9 Backplane Kit DH Including 2 Y-Cables 795900 10 Backplane Y Cable Harness (Black/White/Yellow) 815300 11 Pilot-DH Module Power Supply 805500 12 Pilot-DH Module, Only PILOTDH250 13 Pilot-DH 250-Station Expansion Kit (Module and Power Supply) PILOTDH250EXP 14 Front Plane Kit DH (No Harness) Midplane Assembly, Screws 411601 15 Pedestal Mounting Template with Bolts 581700 1 2 6 5 11 12 8 4 3 14 7 15 9 10 13
Les Spécialistes des Métiers de l’Eau et du Paysage CONTROLLERS 38 COMMUNICATION PARTS FOR PILOT-FC, -DH, AND -FI ITEM DESCRIPTION MODEL 1 Hardwire COMModule PILOTHWR 2 915 MHz Spread Spectrum PILOTFILF 3 2.4 GHz Spread Spectrum (Obsolete) PILOTFIILF (INTL) 4 Radio COMModule PILOTMODUHF 4 Radio COMModule (Australia Only) PILOTMODUHFA 5 915 MHz Replacement Antenna 806100 6 2.4 GHz Replacement Antenna (Obsolete) 806101 NS Lid Antenna for Pedestal, UHF IMMSANT2 NS Antenna for Wall or Pole Mount, UHF IMMSANT3 NS Directional Antenna for Pole Mount, UHF IMMSANTYAGI3 NS High-Gain Omnidirectional Mast Antenna RA5M NS = Not Shown; Image on the following page
B2B www.distrijet.ch 022 84 000 45 | Learn more. Visit hunterindustries.com/golf CONTROLLERS 39 1 2 3 4 6 5 FC or DH FI
Les Spécialistes des Métiers de l’Eau et du Paysage CONTROLLERS 40 GFCP & VFCP (FOR ALL CONVENTIONAL AND DECODER CONFIGURATIONS) ITEM DESCRIPTION MODEL 1 Lid Kit FCPLKT 2 Cap Kit FCPCKT 3 Door Kit FCPDKT 4 Side Kit FCPSKT 5 Base Kit FCPBKT 6 Template Kit TEMPLT2 7 Lock Assembly, Door FCPDLKT 8 Lock Assembly, Lid FCPLLKT 9 Plastic Backplane for Mounting Electronic Components BACKPLANEKT 10 Radio Lid Assembly (Includes Antenna) FCPLRKT 11 Complete Plastic Pedestal (Flat Top) PEDP1 Image on the following page
B2B www.distrijet.ch 022 84 000 45 | Learn more. Visit hunterindustries.com/golf CONTROLLERS 41 10 1 2 3 4 5 6 8 9 7 11
Les Spécialistes des Métiers de l’Eau et du Paysage CONTROLLERS 42 CONVENTIONAL CONTROLLER COMPONENTS (JANUARY 1998 – PRESENT) ITEM DESCRIPTION MODEL 1 VSX Keypad Facepack Kit VFCKTFP 2 Genesis Keypad Facepack Kit GFCKTFP 3 Power Supply Board Kit GFCKTPSB1 4 Triac Board TB10 5 10-Station Lightning Protection/Output Board LPB10 4-5 10-Station Expansion Kit includes TB10 and LPB10 GFCKTEXP10 6 PSB1 Power Cable Assembly 516140 7 Communications Board Wire Harness 516141 8 Adapter Cable – Communication Board 516237 COMMUNICATION MODULES ITEM DESCRIPTION MODEL 9 Hardwire Replacement Communications Board GFCKTCBHW 10 Radio Replacement Communications Board (New RADIO2KT Only) GFCKTCBR2 NS Remote Stealth Antenna Mount (Includes Antenna) RASREM 11 Radio Module, Synthesized RADIO2KT TRANSFORMER OPTIONS ITEM DESCRIPTION MODEL 12 Transformer Kit, 110 VAC (GFC Series Only) GFCKTTFR1 13 Transformer Kit, 220 VAC (GFC Seriess Only) GFCKTTFR1SV 14 Transformer Kit, 110 VAC (Plastic Controllers) FCPKTTFR2 15 Transformer Kit, 220 VAC (Plastic Controllers) FCPKTTFR2SV NS = Not Shown; Image on the following page
B2B www.distrijet.ch 022 84 000 45 | Learn more. Visit hunterindustries.com/golf CONTROLLERS 43 FIELD CENTRAL 516114 TRIACBOARD POWERSUPPLYBOARD 516111 Plastic Series Transformer Assembly GFC-Only Transformer Assembly GFC Backplane and Kit Locations GFC Backplane and Kit Locations 10 1 2 3 3 4 5 6 12 14 15 9 7 8 11 13
Les Spécialistes des Métiers de l’Eau et du Paysage CONTROLLERS 44 DECODER CONTROLLER COMPONENTS (JANUARY 1998 – PRESENT) ITEM DESCRIPTION MODEL 1 VSX Keypad Facepack Kit VFCKTFP 2 Genesis Keypad Facepack Kit GFCKTFP 3 Decoder Power Supply Board Kit VKTPSB2 4 Decoder Lightning/Output Board VLPTKT 5 Decoder CPU Board VCPUKT 6 Decoder Transmitter Board VTRNSKT 7 RJ45 Cable 516238 8 Power Supply Board Wire Harness 516140 9 Adapter Cable – Communication Board 516237 17 Transmitter Cable 516143 18 Communications Board Wire Harness 516141 COMMUNICATION MODULES ITEM DESCRIPTION MODEL 10 Hardwire Replacement Communications Board GFCKTCBHW 11 Radio Replacement Communications Board (New RADIO2KT Only) GFCKTCBR2 NS Remote Stealth Antenna Mount (Includes Antenna) RASREM 12 Radio Module, Synthesized RADIO2KT TRANSFORMER OPTIONS ITEM DESCRIPTION MODEL 13 Decoder Transformer Kit, 110 VAC (GFC Series Only) GVKTTFR1 14 Decoder Transformer Kit, 220 VAC (GFC Series Only) GVKTTFR1SV 15 Decoder Transformer Kit, 110 VAC (Plastic Controllers) FCPVKTTFR2 16 Decoder Transformer Kit, 220 VAC (Plastic Controllers) FCPVKTTFR2SV NS = Not Shown; Image on the following page
B2B www.distrijet.ch 022 84 000 45 | Learn more. Visit hunterindustries.com/golf CONTROLLERS 45 CENTRAL FIELD 10 1 2 3 4 5 6 11 13 14 16 17 18 9 7 8 12 15
Les Spécialistes des Métiers de l’Eau et du Paysage CONTROLLERS 46 TRISEND CENTRAL COMPONENTS ITEM DESCRIPTION MODEL 1 TriSend Central Radio/CPU Board TRIKTRB 2 TriSend Central Hardwire Board TRIKTHWB 3, 6, 7 Radio Bracket Assembly with Fan TRIRADKTNR 4 Radio Module (Specify Frequency) RADIO2KT 5 Transformer Kit, 110 VAC TRIKTTFR 5 Transformer Kit, 220 VAC TRIKTTFRSV 6 Radio Antenna Cable Extension 516090 7 Strain Relief Bushing 504461 8 Lock Assembly, Door 387300 Note: All kits include any necessary mounting hardware UPGRADE KIT ITEM DESCRIPTION MODEL 3, 4, 6, 7 Radio Module Kit. Includes Bracket/Fan Assembly and Radio, for Retrofit to NR Versions. Specify Frequency when Ordering Radio Module Kit. TRIRADKT Image on the following page
B2B www.distrijet.ch 022 84 000 45 | Learn more. Visit hunterindustries.com/golf CONTROLLERS 47 6 5 7 4 3 2 1 8
Les Spécialistes des Métiers de l’Eau et du Paysage 48 CONTROLLERS ICD-HP COMPONENTS 5 ICD-HP Components ICD-HP is packaged with required accessories. 4 1 2 3 ITEM DESCRIPTION MODEL 1 Programming Cup 177600 2 Programming Cable 6' (2 m) with Connectors 180504 3 Red and Blue 6' (2 m) Leads 180508 4 Carrying Case 205800
